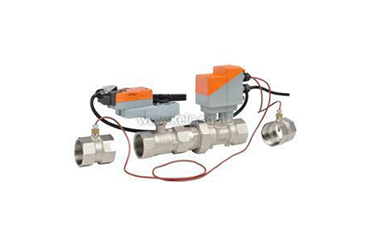

Electronic Pressure Independent Valves
The Belimo EV Energy Valve Series is an energy metering pressure independent control valve that optimizes, documents and proves water coil performance. The Energy Valve measures energy using its built-in electronic flow sensor and supply and return temperature sensors. It also controls power with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations. Finally, it manages delta T by reduces pumping costs while increasing chiller/boiler efficiency by optimizing coil efficiency.
Descargar

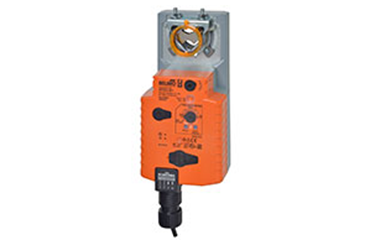

Fast-acting fail safe actuators
The Belimo NKQ Series actuators are electronic, fail safe, fast acting actuators. They are designed to deliver a 4 to 10 second (4 second is standard) fail safe return. They are not spring return, but rather they are driven by a super capacitor which allows a very fast return to the normal or fail safe position desired. The basic models come in both ON/OFF and 2-10VDC options. Auxillary switches and feedback options are available on the NKQB24-1 model. The NKQB24-SR comes with a feedback of 2-10 VDC standard and the auxillary switch is an optional add-on. For more customized control, the NKQx-MFT models can be custom ordered based on the options available.
Descargar

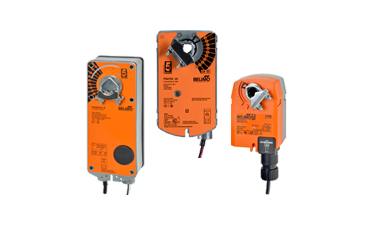

Fire and Smoke Damper Actuators
Belimo's broad product line of fire and smoke damper actuators covers the established range of system applications including active smoke control for stairwell, under-floor and other pressurization applications.
Descargar
CIRCUITO MODULAR

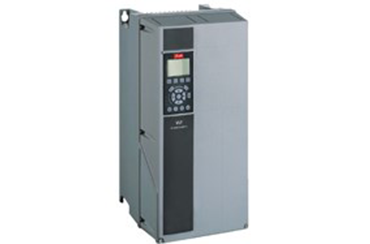

FC-103P18KT4E21H1XGXXXXSXXXXAZBXCXXXXDX VLT® Refrigeration Drive FC 103 18,5kW, 3x 380-480V, IP21/NEMA1, RFI A1+B1; f. armónicos, Sin opción de freno, Con display gráfico, Tarjetas no barnizadas, Sin interruptor de línea, AKD-LonWorks, (BX) Opción B no incluida, Opción D no incluida Código de modelo:FC-103P18KT4E21H1XGXXXXSXXXXAZBXCXXXXDX
Descargar
